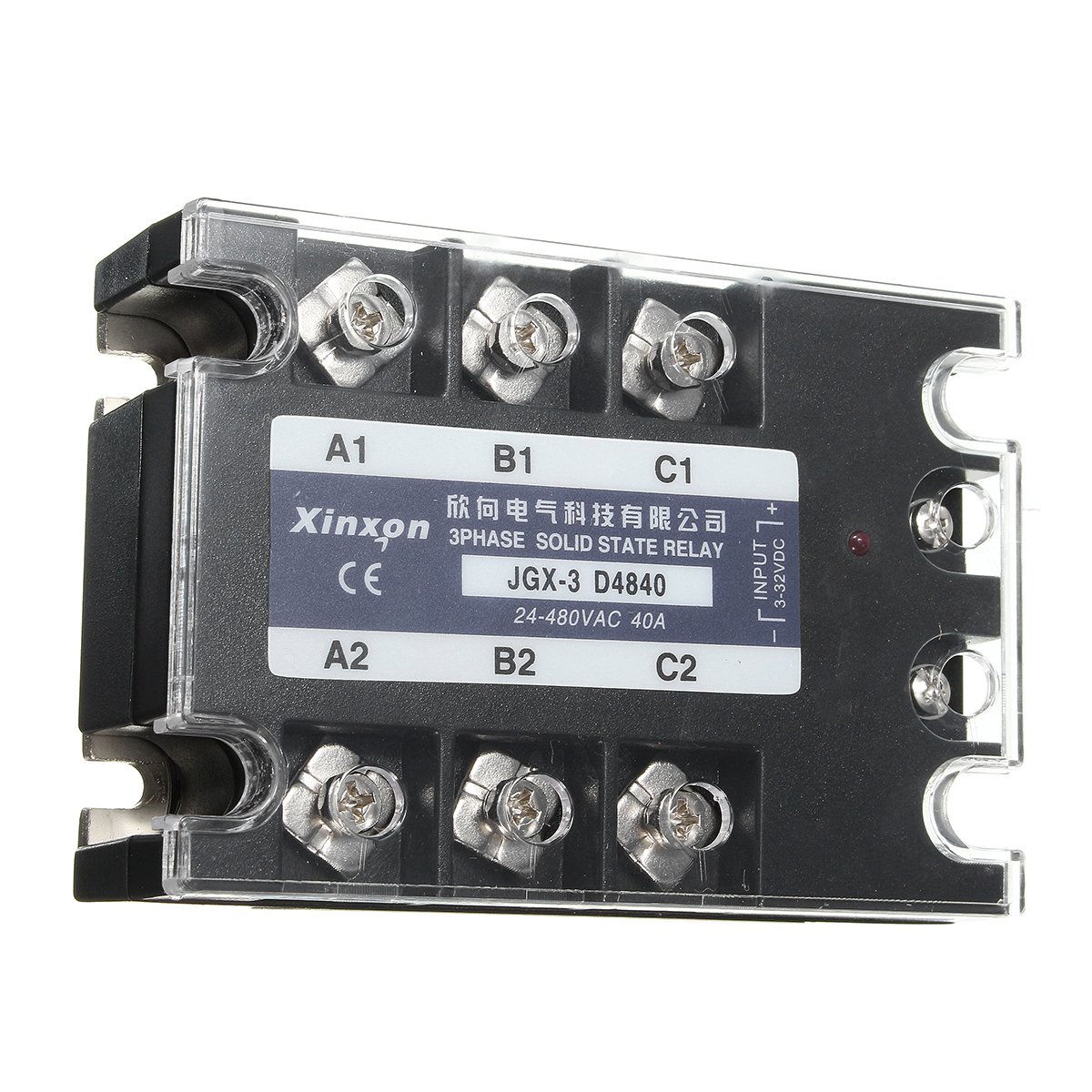

JGX-3 D4840 Three Phase Solid State Relay SSR DC-AC 40A Input 3-32VDC 24-480VAC
4.5 (92 items)
Limited Time Sale$52.26 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 221598625 | Release Date | 2026/05/03 | List Price | $34.84 | Model Number | 221598625 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
parameterControl method: DC control AC (CDG1-1DA), AC control communication (CDG1-1AA), DC control DC (CDG1-1DD)Output current: 10A, 15A, 20A, 25A, 30A, 40A, 60A, 75A, 80A, 100A, 120AInput control voltage: 3-32VDC 80-280VACLoad voltage: 12-220VDC, 24-480VACInput control current: <30mAOff-state leakage current: ≤5mADown-state pressure: ≤1.6VACOn-off time: ≤5msMedium pressure: 2500VACInsulation resistance: 100m/500VDCOperating current safety factor: Resistive load: 60% Inductive load: 30%Electric life: ≥ 1 million timesFeaturesFrom the shell, electronic circuit board, flame-retardant engineering plastic shell, metal cooling floor,SCR composition.Special optocoupler isolation, stable and reliable operation, fast switching speed,High operating frequency, long service life,Low noise, low power consumption, beautiful appearance, easy installation and use.Working conditionsAmbient temperature: -30°C-70°CSupply voltage range: 85% to 110%Elevation: ≤2000 metersInstallation Category: IIInstallation conditionsWhen using a load current higher than 10A, the radiator must be used and must be in the solid state relayApply thermal grease between the low heat sink and the mounting surface of the heat sink. Cool the fan over 60A.Package List: 1 pc relay.Item specifics:Item type: Power SupplyModel number: CDG1-1DA40A solid state relay
- Item type: Power Supply
- Model number: CDG1-1DA40A solid state relay
| UPC | 641275112960 |
|---|---|
| Brand Name | GIMAX |
| Part Number | GMX-D41D8CD98F00B204E9800998ECF8427E |
| Manufacturer | GIMAX |
| Mounting Type | Surface Mount |
| Current Rating | 40 Amps |
| Specification Met | Ce/Ip |
| Contact Current Rating | 40 Amps |
| Upper Temperature Rating | 70 Degrees Celsius |
| Maximum Switching Current | 40 Amps |
